UL21924 TPU Uila Puna-pale-a-Ai 105C 300V no ka Uea Kuloko

ʻIkepili ʻenehana:

ʻO ke kinona, annealed, stranded a i ʻole ka mea lawe keleawe paʻa.PVC TPE A I ʻole MPPE MPPE-PE hoʻokaʻawale.PUR lole lole.ʻO ka uwea keleawe i hoʻopaʻa ʻia a i ʻole ka pale wili.Ka wela i koho ʻia: 105 ℃.Volta helu: 300Volts.Holo i ka UL & CUL Horizontal Flame Test.Uea Kuloko.

E HOAKAKA ANO HOOLAHA I KA PDF

Huahana Huahana

UL21924 KAUPA PALU

Ka helu waihona: E214500

ʻIkepili ʻenehana

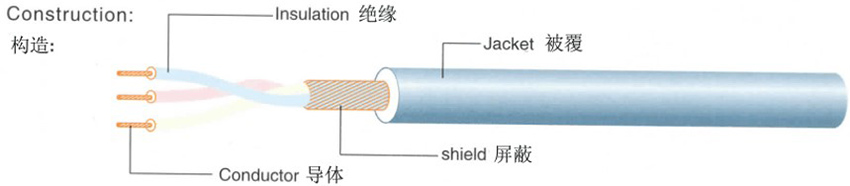

-- Ka mea hoʻoheheʻe keleawe, hoʻopili ʻia, stranded a paʻa paha.

-- PVC TPE A I ʻole MPPE MPPE-PE hoʻolalelale.

-- PUR lole lole.

-- Uea keleawe a i ʻole ka ʻili keleawe a i ʻole ka pale pale.

-- Ka wela helu: 105 ℃.Volta helu: 300Volts.

-- Holo i ka UL &CUL Horizontal Flame Test.

-- Uea Kuloko.

ʻAno UL & ʻAno CUL	Cores	Mea alakaʻi		Hoʻomākaʻi mānoanoa	Nom. ʻO Dia	Palekana Ka uhi	Mānoanoa Kāleka	holookoa Dimeter	Mea alakaʻi Kū'ē ma 20 ℃
		AWG	Kūkulu	Hoʻomākaʻi mānoanoa	Nom. ʻO Dia	Palekana Ka uhi	Mānoanoa Kāleka	holookoa Dimeter	Mea alakaʻi Kū'ē ma 20 ℃
		AWG	ʻAʻole/mm	mm	mm	%	mm	mm	Ω/KM
UL21924 （Paʻa ʻia)	2C	30	7/0.100	0.23	0.80	>=65	0.38	3.50	381.00
		28	7/0.127	0.23	0.90	>=65	0.38	3.70	239.00
		26	7/0.16	0.23	1.00	>=65	0.38	3.90	150.00
		24	11/0.16	0.23	1.10	>=65	0.38	4.10	94.20
		22	17/0.16	0.23	1.30	>=65	0.38	4.50	59.40
		20	21/0.178	0.23	1.50	>=65	0.38	4.90	36.70
		18	34/0.178	0.23	1.80	>=65	0.38	5.50	23.20
		16	26/0.254	0.23	2.10	>=65	0.38	6.10	14.60
	3C	30	7/0.100	0.23	0.80	>=65	0.38	3.70	381.00
		28	7/0.127	0.23	0.90	>=65	0.38	3.90	239.00
		26	7/0.16	0.23	1.00	>=65	0.38	4.10	150.00
		24	11/0.16	0.23	1.10	>=65	0.38	4.30	94.20
		22	17/0.16	0.23	1.30	>=65	0.38	4.70	59.40
		20	21/0.178	0.23	1.50	>=65	0.38	5.20	36.70
		18	34/0.178	0.23	1.80	>=65	0.38	5.80	23.20
	4C	30	7/0.100	0.23	0.80	>=65	0.38	3.90	381.00
		28	7/0.127	0.23	0.90	>=65	0.38	4.10	239.00
		26	7/0.16	0.23	1.00	>=65	0.38	4.40	150.00
		24	11/0.16	0.23	1.10	>=65	0.38	4.60	94.20
		22	17/0.16	0.23	1.30	>=65	0.38	5.10	59.40
		20	21/0.178	0.23	1.50	>=65	0.38	5.60	36.70
